5-in-1 Ice HIFU and Microneedling RF Beauty Machine with 15-Inch Touchscreen

Description

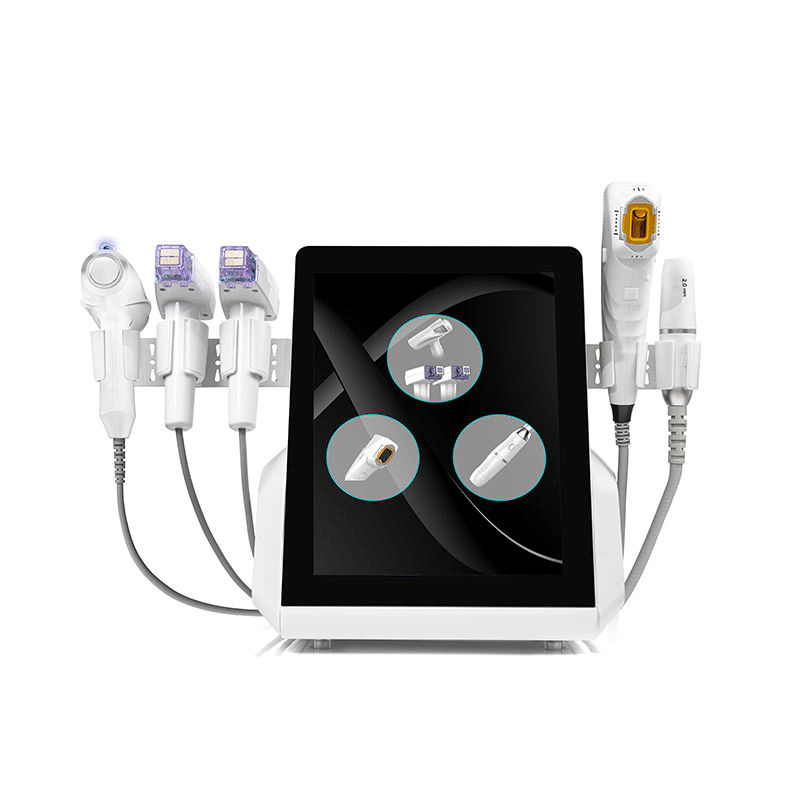

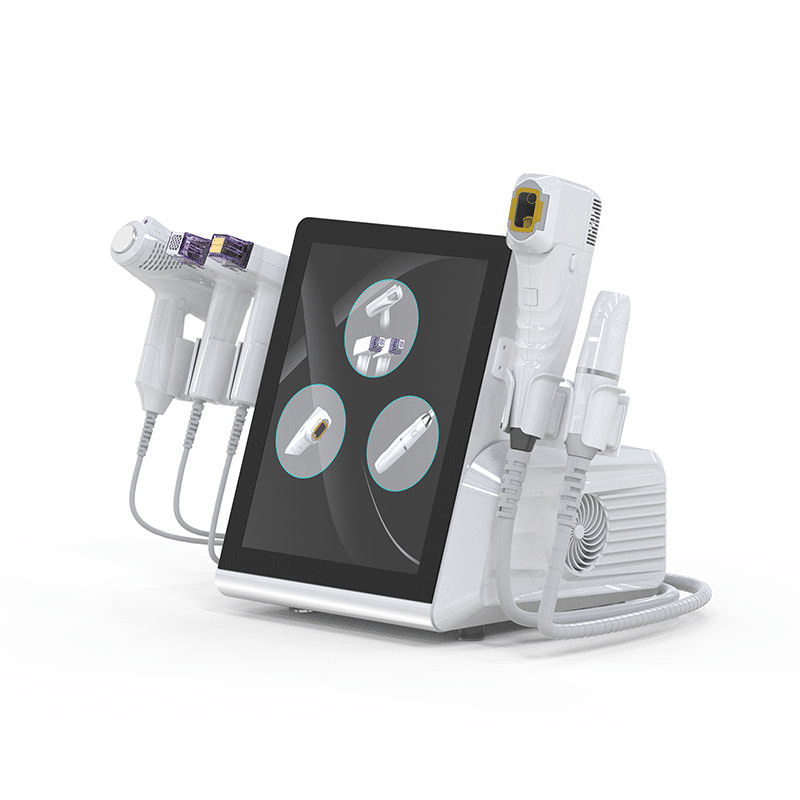

The SK-I61 (FRZHIFU EMRF M8) is a multi-functional beauty platform engineered for professional beauty salons and aesthetic centers. It integrates five specialized treatment modalities—multi-row freezing focused ultrasound, single-point freezing focused ultrasound, dual-handle non-invasive EMRF, fractional microneedling radiofrequency, and a semiconductor cold hammer—to support non-invasive facial lifting, focused body contouring, and fractional skin texture resurfacing.

Technical Specifications

• Display: 15-inch touchscreen interface
• Operating Voltage: AC 110V–230V ± 10%, 50/60 Hz
• Power Range: 10–600 W
• Gross Weight: 20.5 kg
• Package Dimensions: 52 × 47 × 57 cm (protective aluminum case)
• Multi-Row ICE HIFU12: 0.1–2.0 J energy output, 1–12 adjustable lines (up to 300 focal points per trigger), 10,000 shots per cartridge; includes 3.0 mm and 4.5 mm standard cartridges; probe surface cools to approximately 10°C
• Single-Point ICE Vmax: 1–10 Hz operating frequency, 10–100% J energy range, 1–9 dots per second, 62,000 shots per cartridge; includes 2.0 mm, 3.0 mm, and 4.5 mm standard cartridges; probe surface cools down to approximately -10°C
• EMRF Module: 0–300 W output, 0.5–2.5 mm penetration depth; includes No.5 (periorbital) and No.6 (face and neck) treatment tips

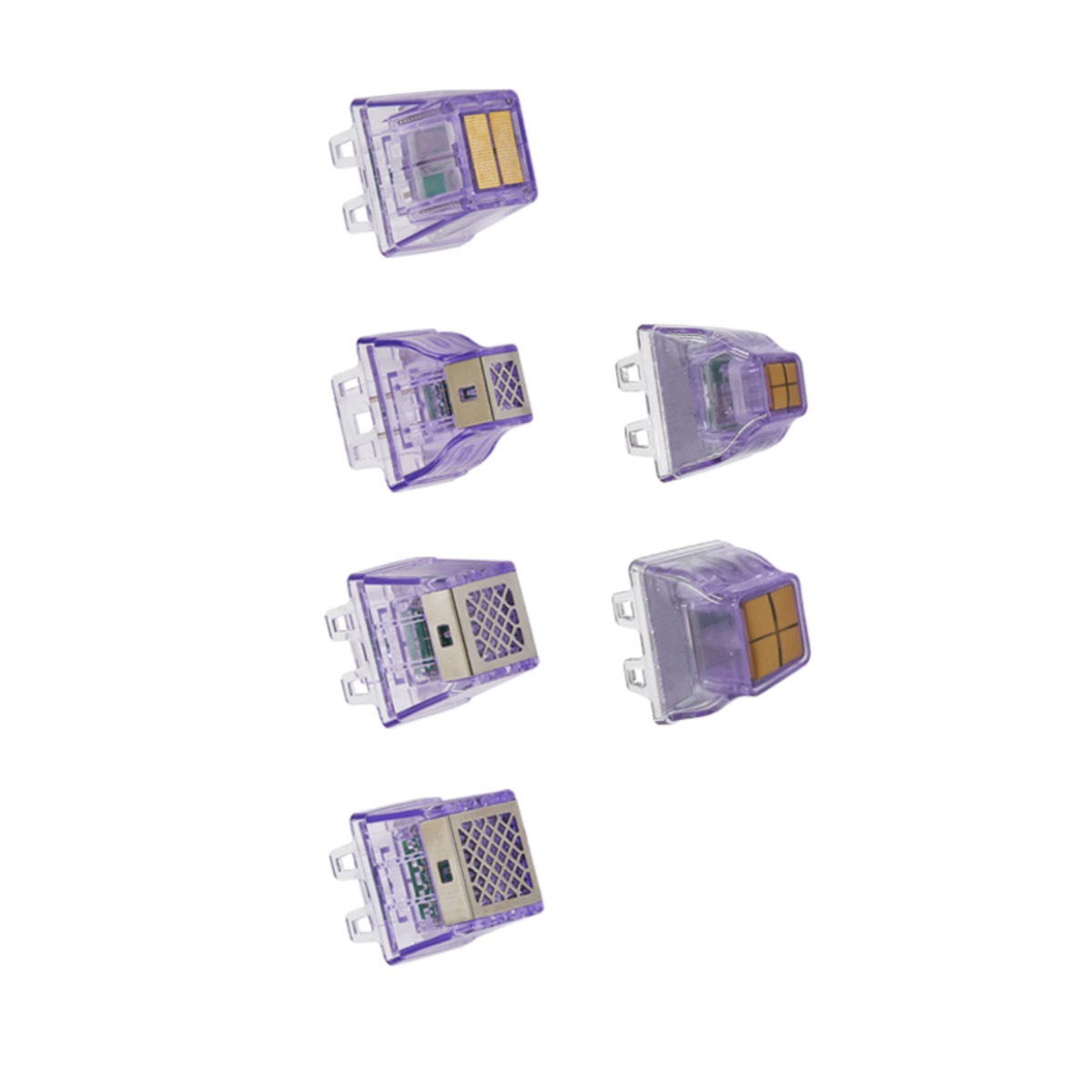

• M8 Microneedling RF: 0–200 W (facial mode) / 0–300 W (body mode), adjustable needle depth from 0.5 mm to 7 mm (with deep penetration capability reaching 8 mm), insulated gold-plated tapered needles; includes 12P, 24P, 40P, and nano treatment tips

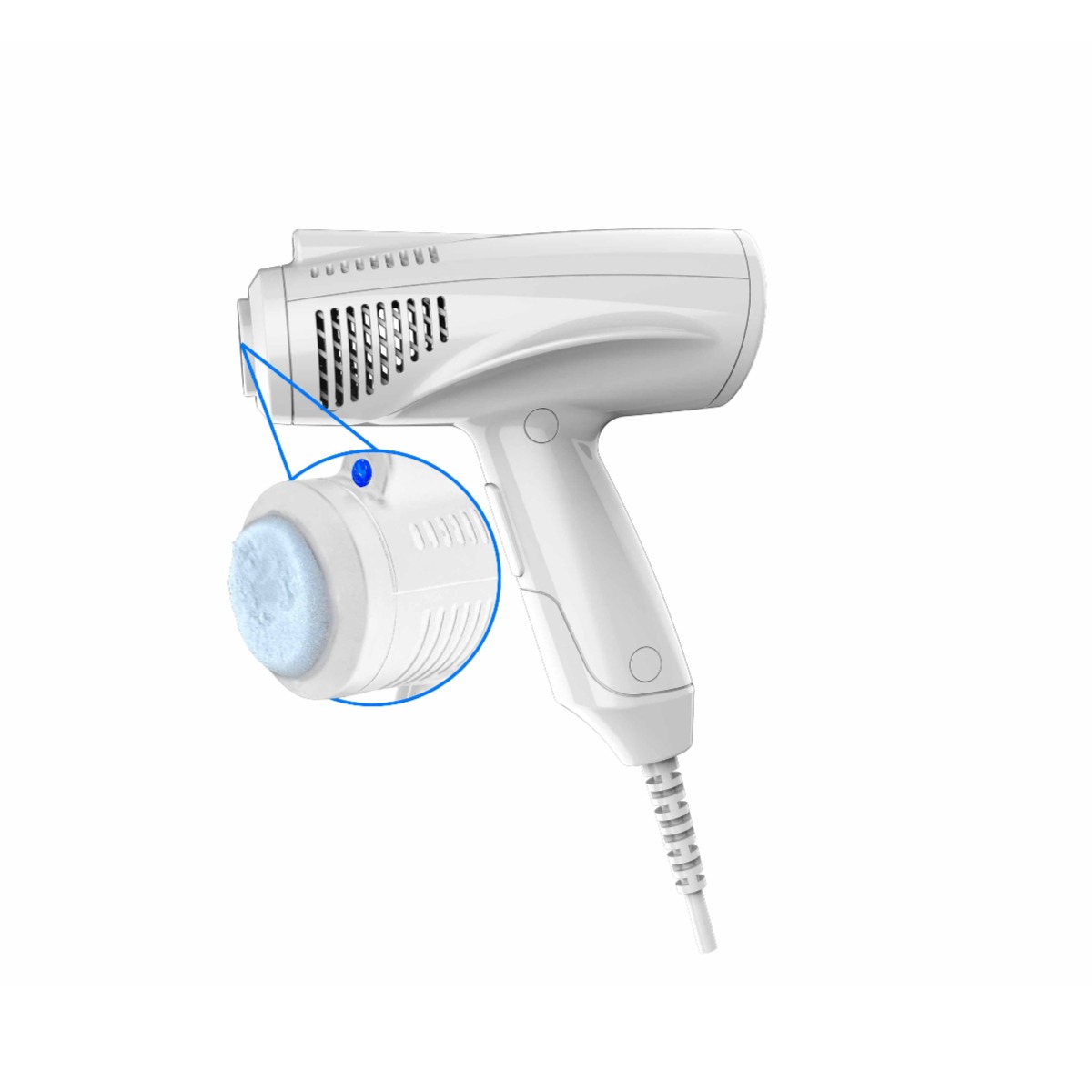

• Ice Hammer: Semiconductor cooling mechanism delivering over 30 minutes of continuous cold output
• Internal Water Requirement: 800 ml purified water required prior to initial power-on; water replacement recommended every 15 days
• Warranty: 2-year coverage for the host unit and 6-month coverage for accessories from the factory date

Applications & Suitability

This workstation is configured for full-face tightening, jawline definition, targeted wrinkle smoothing on the neck and eye areas, and fractional remodeling for uneven skin texture and enlarged pores. Each modality addresses a distinct anatomical level, ranging from the deep SMAS fascia layer (4.5 mm) and subcutaneous fat layers to the reticular dermis and epidermis.

This device is not suitable for individuals who are pregnant, lactating, menstruating, or planning pregnancy within one month. It must not be operated on areas with open wounds, active severe cystic acne, or keloid scars. Clients who have received hyaluronic acid or collagen injections within the previous 6 months, neurotoxin injections within the previous year, or who possess silicone implants, metal plates, or cardiac pacemakers in the treatment area are ineligible. Furthermore, it is contraindicated for individuals diagnosed with diabetes, hypertension, cardiac disorders, thyroid disorders, epilepsy, or blood coagulation abnormalities. The M8 microneedling handpiece creates micro-punctures and requires topical anesthesia, sterile preparation, and 4 to 14 days of downtime while micro-crusts heal.

Frequently Asked Questions

Why does the machine include both multi-row HIFU and single-point Vmax handpieces?

The multi-row ICE HIFU12 discharges 1 to 12 parallel lines to cover broad anatomical areas efficiently, while the single-point ICE Vmax features a pen-style contact tip designed for 360-degree sliding manipulation across curved contours and tight facial areas like the nasolabial folds and periorbital zone.

What initial maintenance is mandatory before operating the machine?

The cooling reservoir must be filled with approximately 800 ml of pure distilled water while the unit is completely powered off. Operating the workstation without water is strictly prohibited, as it will cause internal component failure. The cooling water should be changed every 15 days, and all water must be completely drained before transit.

How does the integrated semiconductor cooling protect the epidermis?

The contact probes maintain an active cooling surface—chilling to approximately 10°C on the multi-row probe and down to approximately -10°C on the Vmax probe. This maintains the epidermal surface temperature between 9°C and 20°C throughout energy delivery, preventing superficial heat buildup, burns, and bruising while thermal coagulation points form in deeper target tissues.

What is the required waiting interval between ultrasound and microneedling treatments?

Operators must maintain an interval of at least 1 month between focused ultrasound procedures and M8 microneedling RF procedures performed on the same anatomical area.

What downtime can be expected following an M8 microneedling RF session?

An M8 procedure takes approximately 15 to 20 minutes to complete. The treated skin requires an overall recovery duration of 4 to 14 days, during which tiny scab crusts form and shed naturally within 5 to 10 days.
