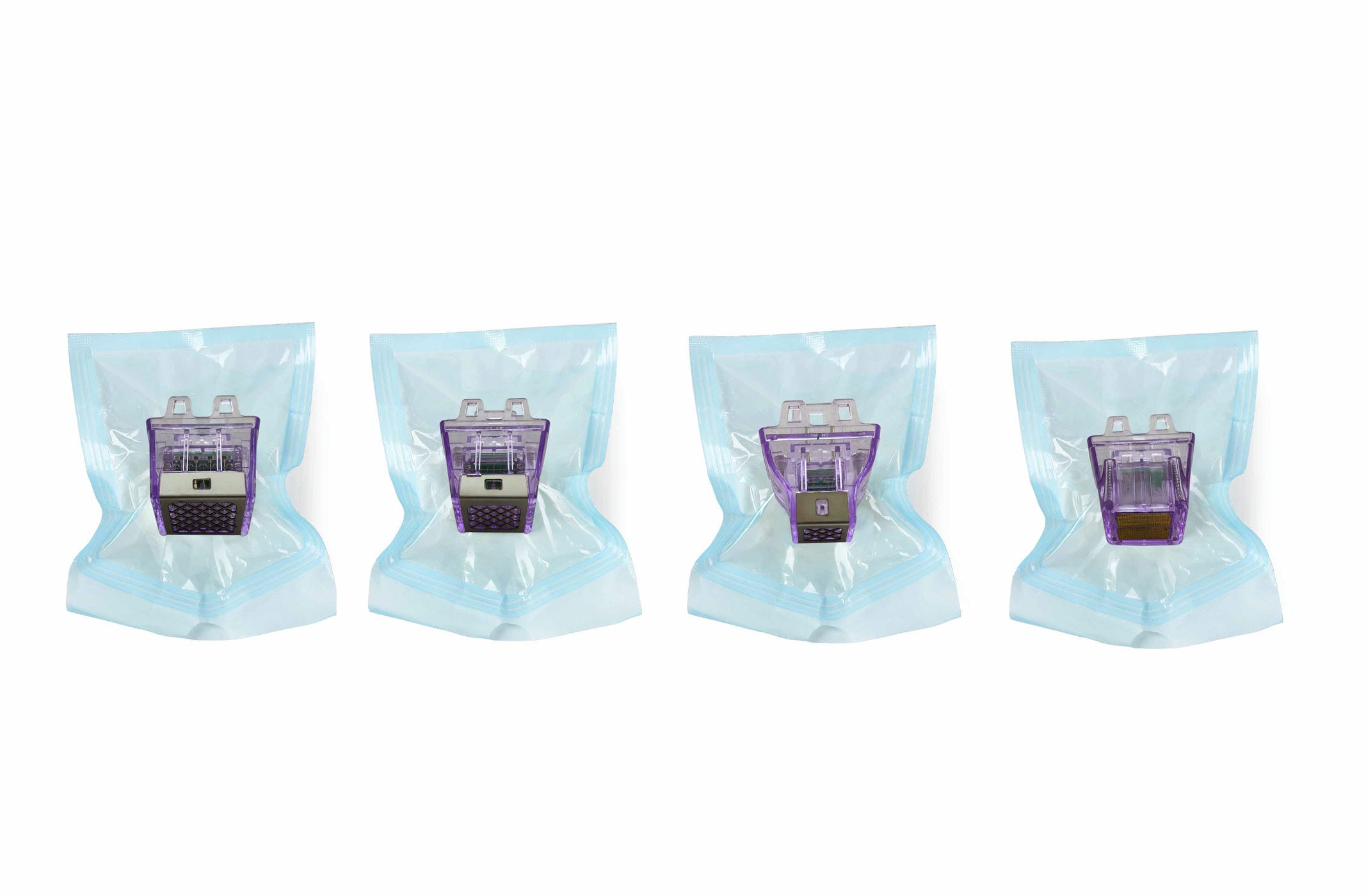

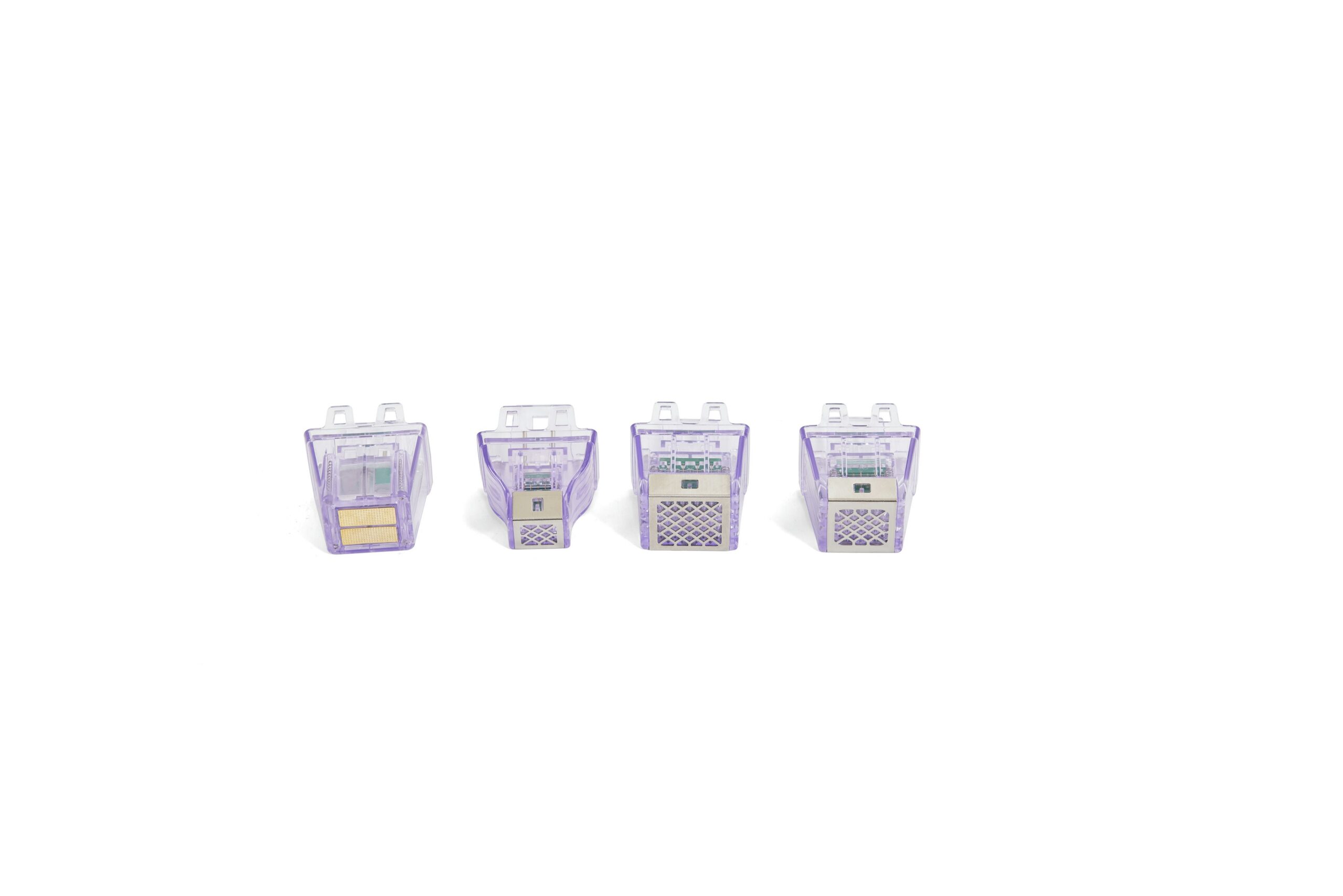

Insulated Cartridges for RF Microneedling Beauty Machine

Description

Specifications

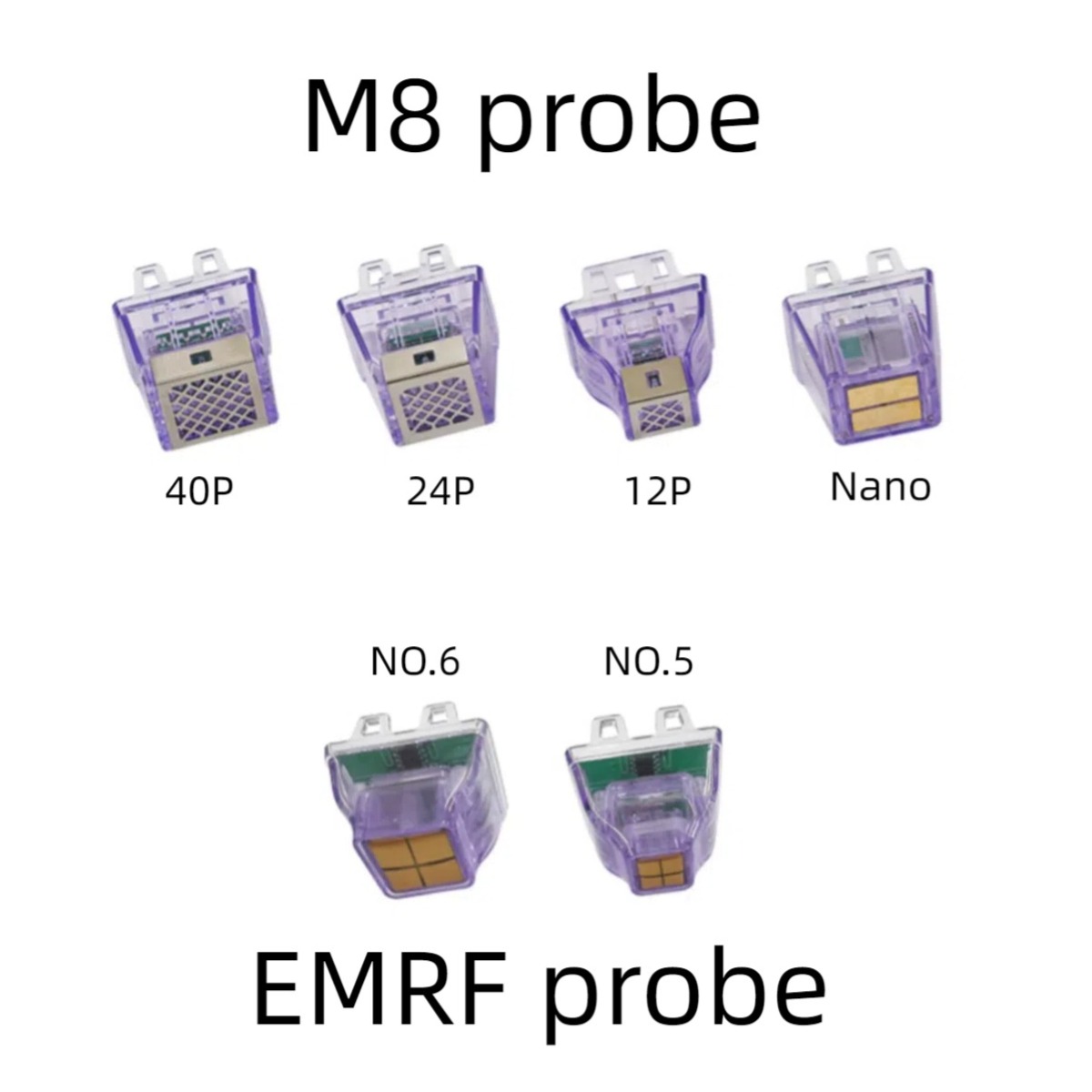

• Operating Modes: Monopolar EMRF Mode and M8 Microneedle Mode
• Monopolar Probes: No.5 Eye Area Probe, No.6 Face and Neck Probe
• Microneedle Probes: 12P, 24P, 40P, and Nano Crystallite Infusion Probe
• Needle Construction: 0.22mm cone-shaped body tapering to a 0.1mm tip with ultra-high gold plating
• Needle Insulation: Insulated needle shaft with 0.1mm active energy-releasing tip
• No.5 Probe Energy: 100-150W
• No.5 Probe Depth: 0.6-1.0mm (Recommended 450-600 shots)
• No.6 Probe Energy: 100-250W
• No.6 Probe Depth: 0.6-2.0mm (Recommended 120-600 shots per area)
• 12P Probe Energy and Depth: 40-100W, 0.5-2.5mm (Regular Mode)
• 24P Probe Energy and Depth: 40-150W, 0.5-2.0mm (Regular Mode)
• 40P Probe Energy and Depth: 80-200W, 2.0-6.0mm (Burst Mode)
• Nano Crystallite Probe Energy: 40-100W
• Probe Usability: Single use only

Applications & Limitations

Typical applications include periorbital skin tightening, full face lifting, neck tightening, pore reduction, acne pit remodeling, and body tissue tightening down to 6.0mm depth. The nano crystallite head is designed to enhance the absorption and transdermal delivery of nutritional products across the face.

This device is not suitable for multi-patient reuse of the same probe; all microneedle and crystallite heads must be discarded after a single session to prevent cross-infection. It is also not suitable for operation if any residual liquid or moisture is present on the probe chip interface during installation.

Frequently Asked Questions

How does the insulated microneedle design protect the epidermis?

The insulated needle body is coated so that RF energy is released solely through the active 0.1mm tip. Thermal energy targets only the deep dermis and subdermal layers, completely avoiding thermal damage, burns, or post-inflammatory pigmentation on the surface skin layer.

What are the preparation instructions for the probes before use?

Disposable crystallite heads can be soaked in an alcohol container for 1 to 2 minutes, after which excess liquid should be shaken off and dried thoroughly with gauze. The probe chip must be verified completely free of moisture before attaching it to the handpiece.

Can the treatment probes be sterilized and used again?

All treatment probes are strictly designed for single-use application only. Reusing disposable probes can lead to cross-infection and blunts the sharp cone-shaped needle tips.

What is the maximum treatment depth achievable on body areas?

The maximum treatment depth is 6.0mm, achieved using the 40P probe running in Burst Mode with an energy output ranging from 80W to 200W.
