Description

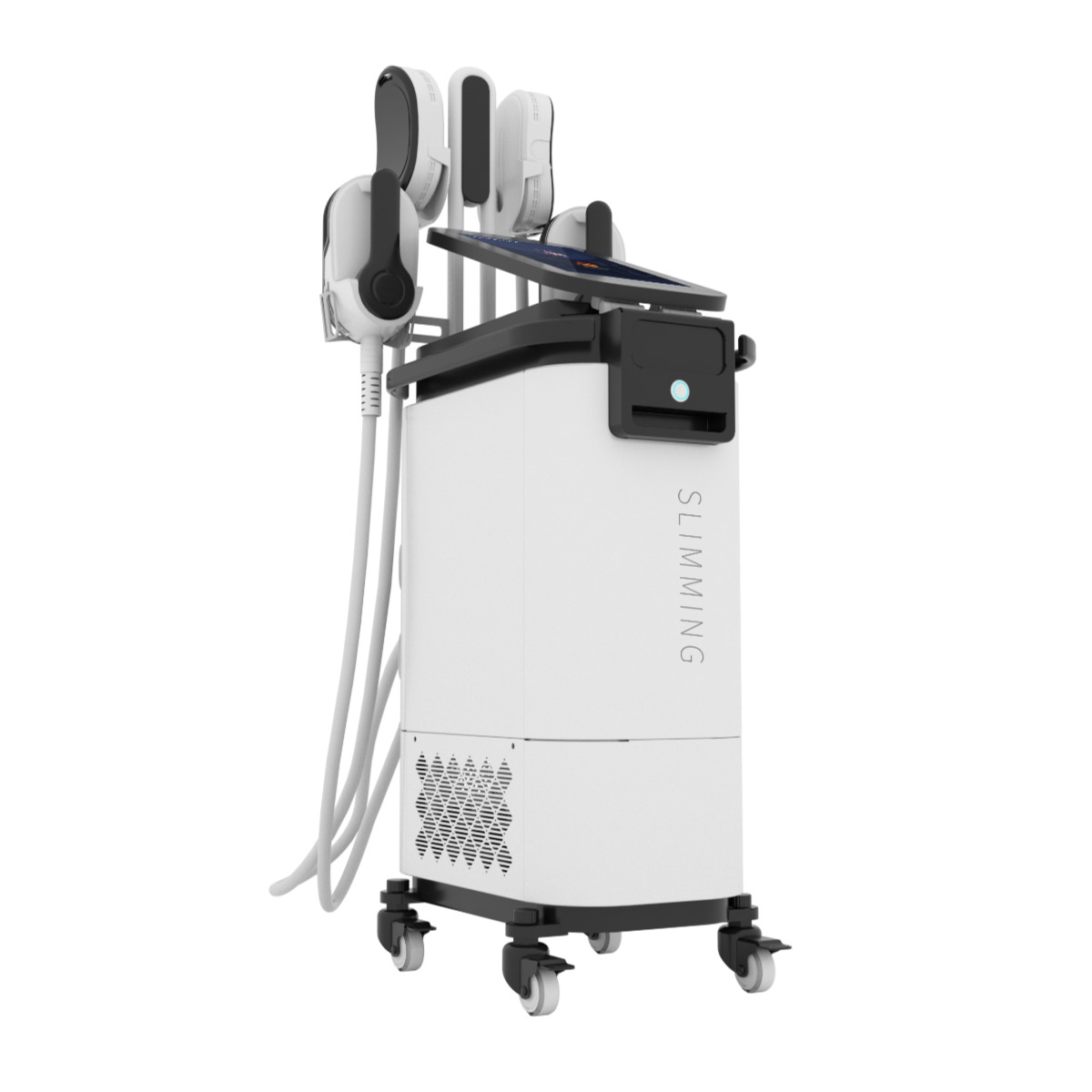

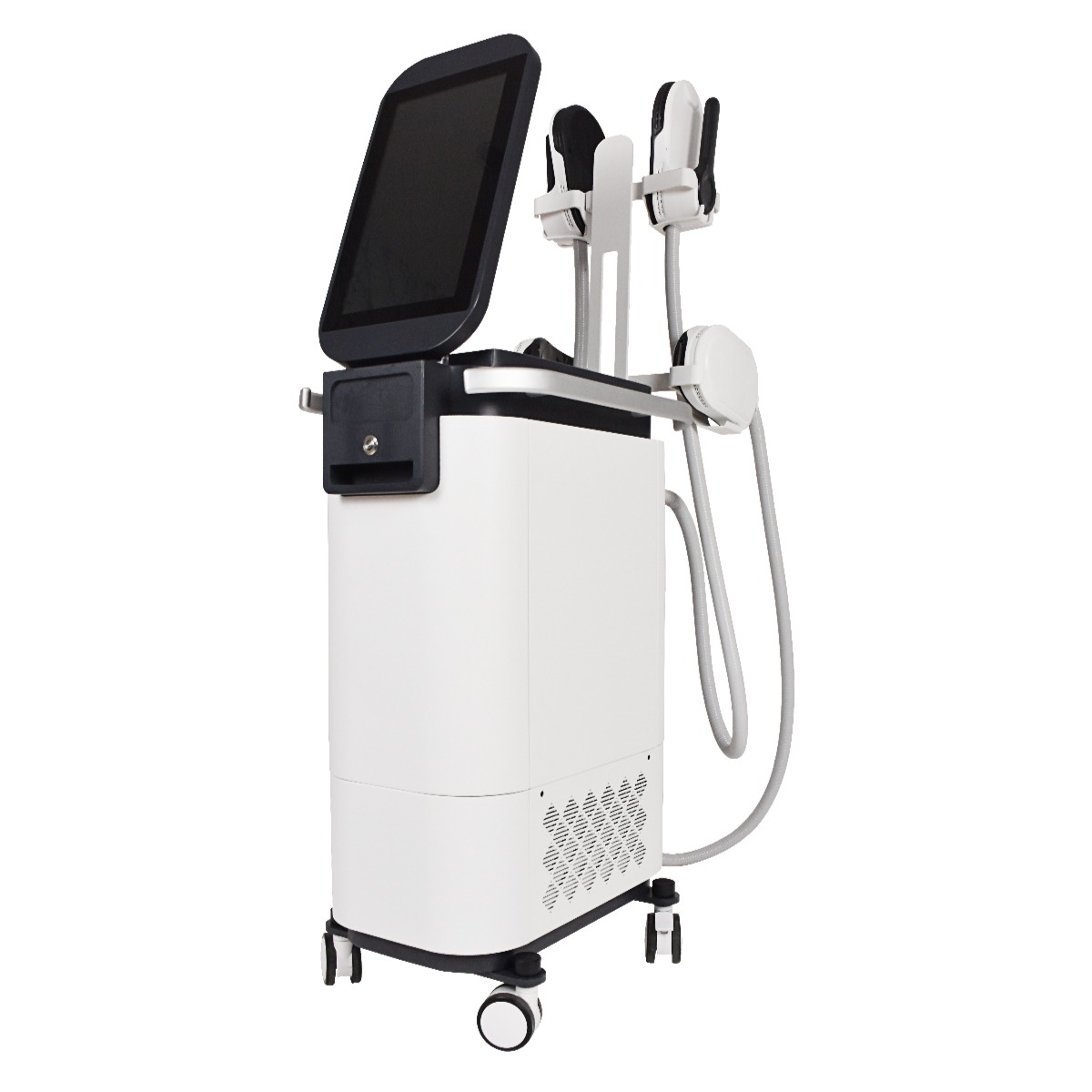

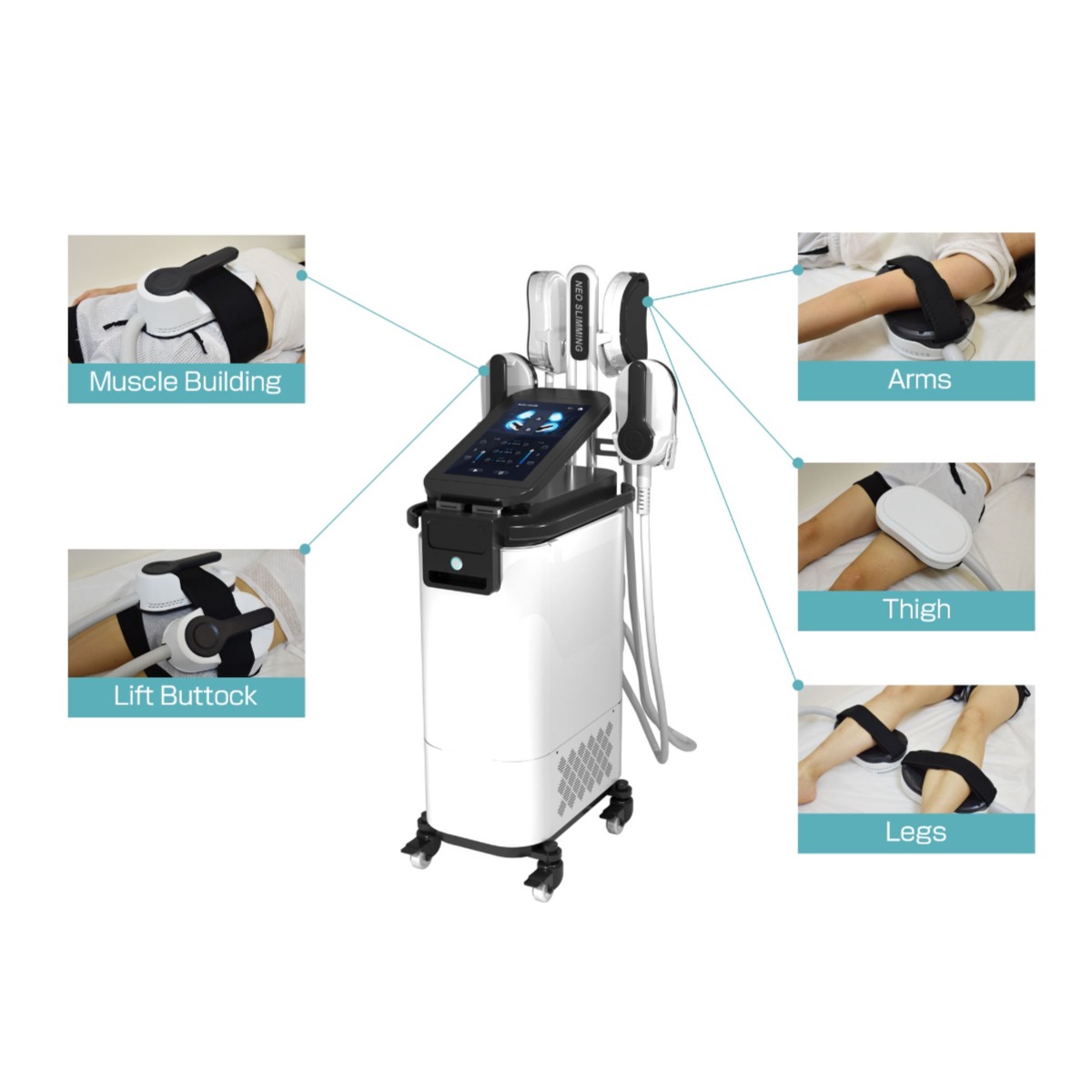

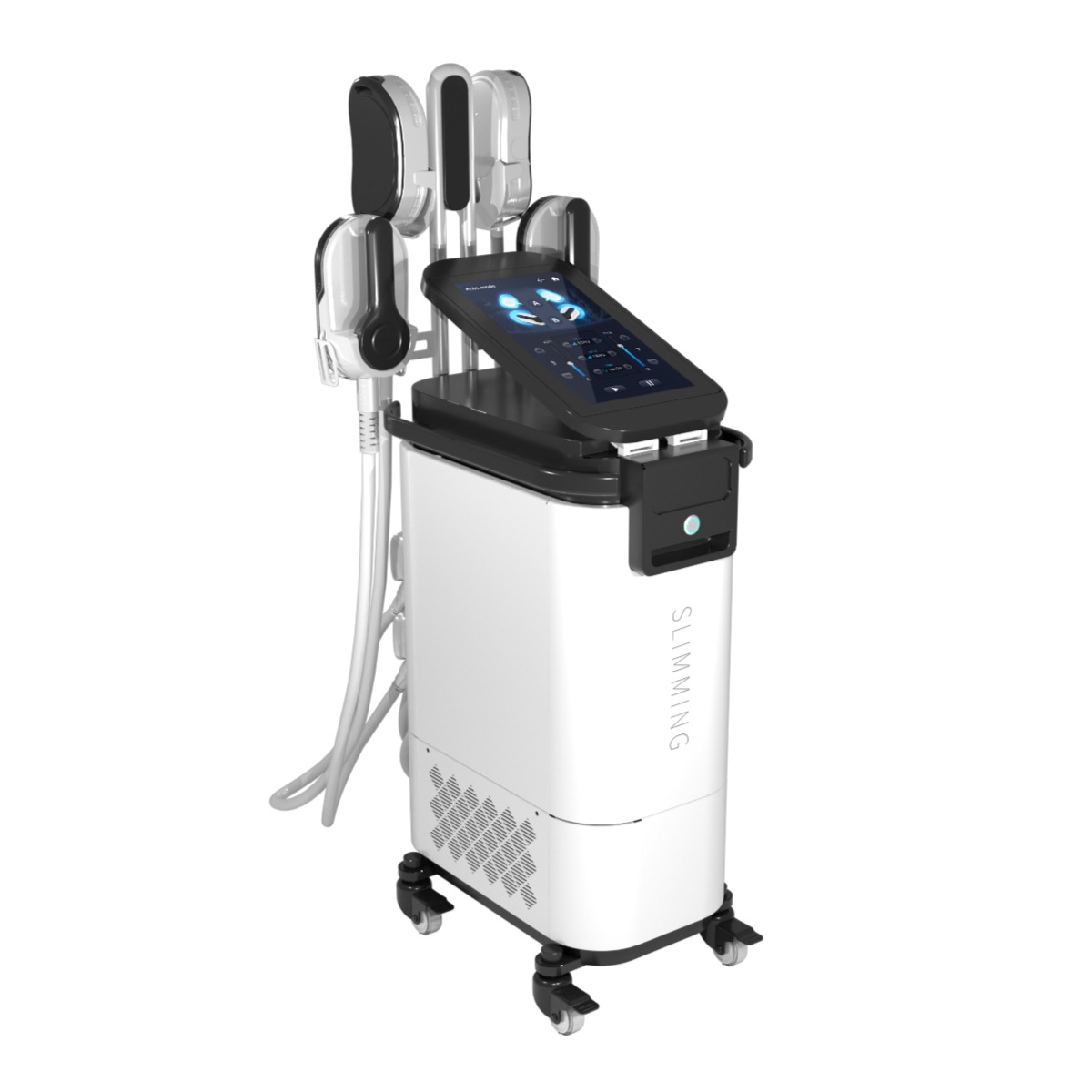

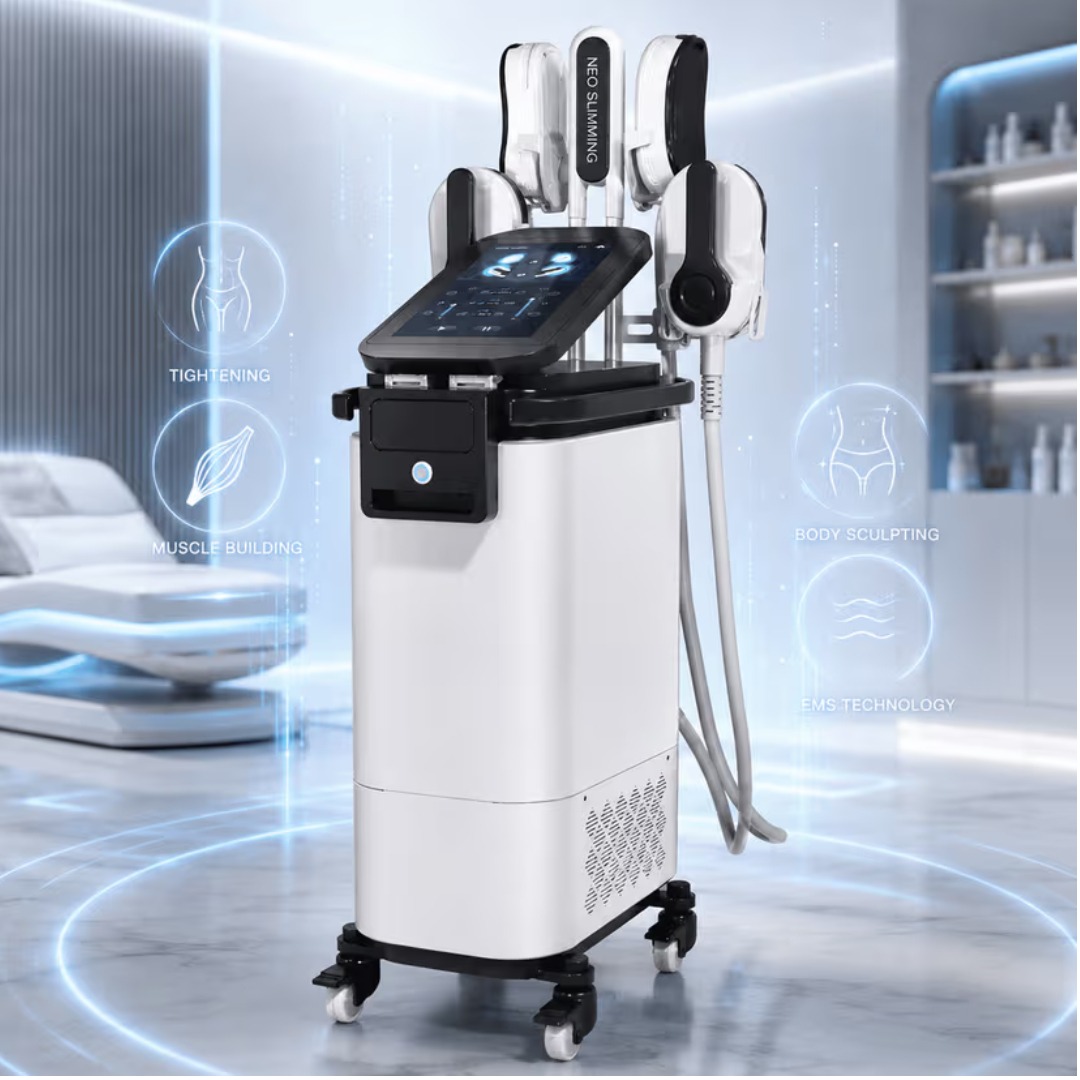

This is a vertical, floor-standing body contouring unit that combines synchronized RF heating with high-pulse muscle contraction in one cabinet. It is built for trained operators working in aesthetic clinics, salons and body-shaping studios, and it treats the abdomen, buttocks, arms and legs through four handles and a 15.6-inch interface.
Specifications
- Power supply: 100–220 V, 50/60 Hz
- Power consumption: 2.3 KVA
- Screen size: 15.6 inch
- Output intensity: 0–7 T
- RF frequency: 5 M
- Pulse: 300 µs (microsecond)
- Pulse shape: biphasic wave

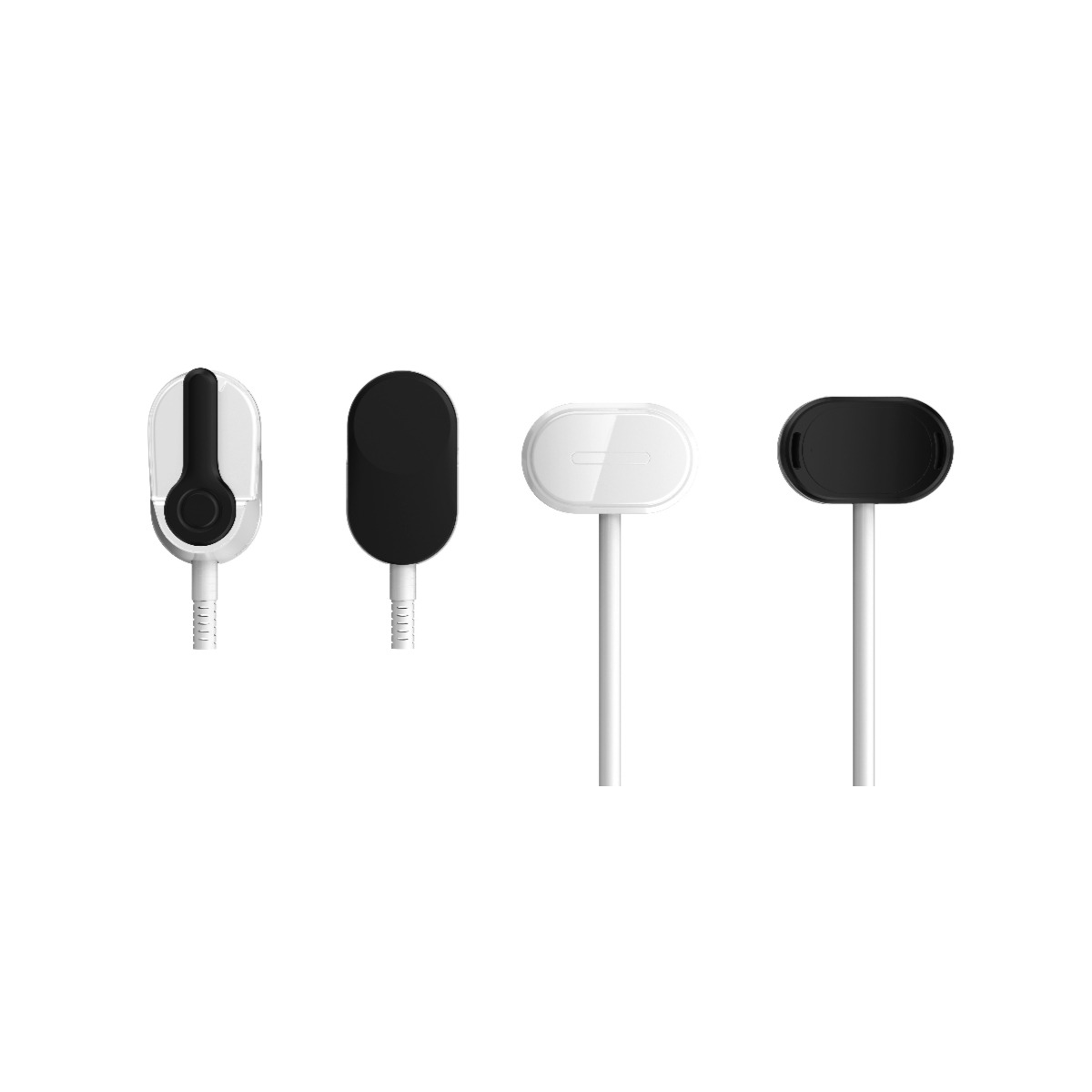

- Handles: 4 operating handles — abdomen/buttocks handle and arm/leg handles
- Handle sockets: 4 universal sockets
- Cooling holes: 2
- Flight case size: 61 × 67 × 114 cm
- Packing weight: 91 kg
- Session length: 30 minutes per body part, maximum 60 minutes
- Recommended schedule: 3 sessions per week; two weeks is one course; 4–6 courses
- Warranty: 1 year for the instrument, 3 months for accessories, excluding artificial damage
Where it fits in practice
The unit is designed for hands-on, operator-controlled sessions. In automatic mode the operator selects settings according to gender, age and treatment area; in manual mode the first, second and third stage frequencies can be adjusted separately alongside RF intensity, high-pulse intensity and treatment time. The abdomen/buttocks handle can also be selected on its own.
It is not suitable for everyone. Do not treat pregnant, breastfeeding or menstruating clients; clients with metal or electronic implants such as pacemakers, defibrillators, neurostimulators or drug pumps; clients with malignant tumours or cancer; clients with heart disease, arrhythmia, epilepsy, severe hypertension or diabetes; or clients with artificial filling in the body. Recent major surgery clients should only be treated after consulting a doctor. Avoid open wounds, avoid the ribs, and do not treat the abdomen within one hour of a meal. Metal objects worn on the body must be removed before use, and the instrument must be operated only by trained personnel.
Installation points worth planning for: connect to a grounded, high-power socket, make sure the plug head is screwed fully into place, and unplug the power cord before moving the equipment. If a treatment room is being planned around body contouring formats, the Cryomagwave 2.45 GHz microwave + HIFEM machine is a different build with five handles.
Common questions
How long is one session, and how many sessions make a course?
One operating session lasts 30 minutes per body part, with a maximum of 60 minutes. Three sessions per week over two weeks make one course, and the manual describes a typical plan of 4–6 courses. The best effect is usually seen 2–4 weeks after treatment, and the result can last up to 6 months when the course is followed.
Who should not be treated with this machine?
Treatment is forbidden for pregnant, breastfeeding and menstruating clients, and for anyone with metal or electronic implants such as a pacemaker, defibrillator, neurostimulator or drug pump. It is also forbidden for clients with malignant tumours or cancer; with heart disease, arrhythmia, epilepsy, severe hypertension or diabetes; or with artificial filling in the body. Clients who have had major surgery need a doctor’s clearance first, wounds must be avoided rather than treated, and the ribs should be avoided during use.
What is the difference between automatic mode and manual mode?
Automatic mode selects settings according to gender, age and the treatment area, and the abdomen/buttocks handle can be chosen independently. Manual mode exposes the first, second and third stage frequencies so the operator can set frequency, RF intensity, high-pulse intensity and treatment time for each client. Both modes use the same on-screen start and pause button for the handle.
What do the E11 and E12 alarm codes mean?
E11 means low water level and E12 means abnormal water flow. Both relate to the circulating cooling water of the device, which is filled and drained as described in the installation section of the manual. When a fault is detected the machine stops the treatment automatically and displays the code, so the water circuit should be checked and refilled before the session continues.
What is included with the machine?
The supplied parts are one host unit, one power cord, four operating handles, one set of bandages in long and short lengths, and one use manual. Replacement parts should be original parts obtained from the manufacturer, as the manual states that using other accessories is the user’s own responsibility.
What has to happen between sessions or before switching the machine off?
After each use the unit should stand by for ten minutes before the power is turned off. If a different operator takes over, five minutes of waiting is required, and the same operator also needs a five-minute gap before using the handles again. When a handle is not in use it should rest on the accessory rack, and the connecting line should not be pulled while the handle sits in the rack.
